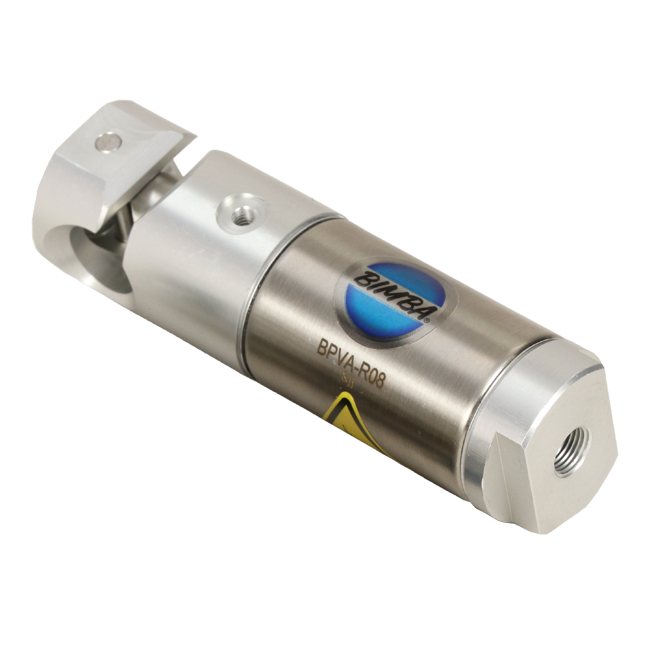

BPV Series Pneumatic Pinch Valves
BPV Series Pneumatic Pinch Valves
The BPV Series Pneumatic Pinch Valves are designed to provide affordability and compactness without sacrificing on quality. This valve series functions by allowing the opening and closing of the tube which results in a controlled flow of various medias. 4 different sizes are available: 1/8”,1/4”, 3/8”, and ½” OD with a permanent grease lubricant that requires no additional lubrication during service. Configurable mounting options are available with additional mounting options sold separately.
- Stainless steel material option designed for sterile, wash down procedures
- Simple and fast tube replacement specifically disposable tubing
- Long performance and extremely reliable
- Durable with the valve body not affected by the corrosiveness of the fluids
- Ideal for various market segments: food and beverage, industrial laboratory sciences, medical devices, chemical processing, water treatment, dispensing, filling, mixing and more
BPV-02
Tube Slot Size: 0.125″ OD
Tube Size, O.D. Supported: 0.094 to 0.125 in.
Tube Wall Thickness Supported: 0.031 in.
Media Pressure, Maximum: 30 psig
Pinch Gap: 0.040 in.
Tube Size, O.D. Supported: 0.094 to 0.125 in.
Tube Wall Thickness Supported: 0.031 in.
Media Pressure, Maximum: 30 psig
Pinch Gap: 0.040 in.
Total Opening Nominal: 0.125 in.
Pinching Force Nominal: Up to 1.8 LbF
Min. to Max. Ambient Temperature: -20° to 200°F
Pinching Force Nominal: Up to 1.8 LbF
Min. to Max. Ambient Temperature: -20° to 200°F
BPV-04
Tube Slot Size: 0.250″ OD
Tube Size, O.D. Supported: 0.156 to 0.250 in.
Tube Wall Thickness Supported: 0.063 in.
Media Pressure, Maximum: 30 psig
Pinch Gap: 0.080 in.
Tube Size, O.D. Supported: 0.156 to 0.250 in.
Tube Wall Thickness Supported: 0.063 in.
Media Pressure, Maximum: 30 psig
Pinch Gap: 0.080 in.
Total Opening Nominal: 0.250 in.
Pinching Force Nominal: Up to 4.5 LbF
Min. to Max. Ambient Temperature: -20° to 200°F
Pinching Force Nominal: Up to 4.5 LbF
Min. to Max. Ambient Temperature: -20° to 200°F
BPV-06
Tube Slot Size: 0.375″ OD
Tube Size, O.D. Supported: 0.250 to 0.375 in.
Tube Wall Thickness Supported: 0.063 in.
Media Pressure, Maximum: 30 psig
Pinch Gap: 0.080 in.
Tube Size, O.D. Supported: 0.250 to 0.375 in.
Tube Wall Thickness Supported: 0.063 in.
Media Pressure, Maximum: 30 psig
Pinch Gap: 0.080 in.
Total Opening Nominal: 0.375 in.
Pinching Force Nominal: Up to 6.9 LbF
Min. to Max. Ambient Temperature: -20° to 200°F
Pinching Force Nominal: Up to 6.9 LbF
Min. to Max. Ambient Temperature: -20° to 200°F
BPV-08
Tube Slot Size: 0.500″ OD
Tube Size, O.D. Supported: 0.375 to 0.500 in.
Tube Wall Thickness Supported: 0.063 in.
Media Pressure, Maximum: 30 psig
Pinch Gap: 0.080 in.
Tube Size, O.D. Supported: 0.375 to 0.500 in.
Tube Wall Thickness Supported: 0.063 in.
Media Pressure, Maximum: 30 psig
Pinch Gap: 0.080 in.
Total Opening Nominal: 0.500 in.
Pinching Force Nominal: Up to 12.2 LbF
Min. to Max. Ambient Temperature: -20° to 200°F
Pinching Force Nominal: Up to 12.2 LbF
Min. to Max. Ambient Temperature: -20° to 200°F
